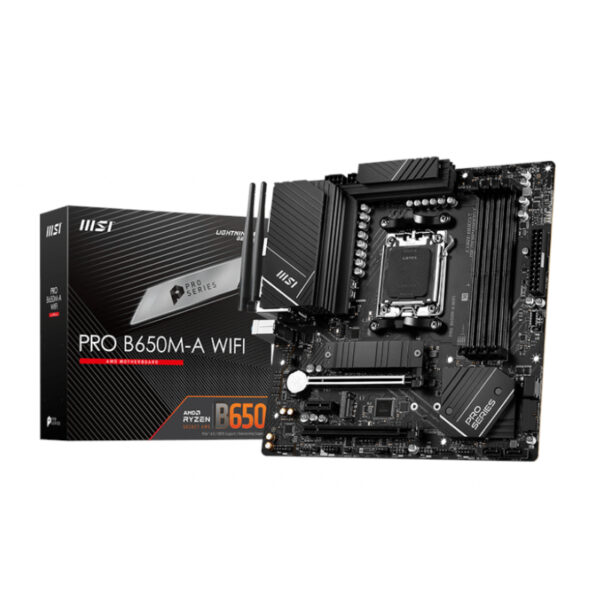

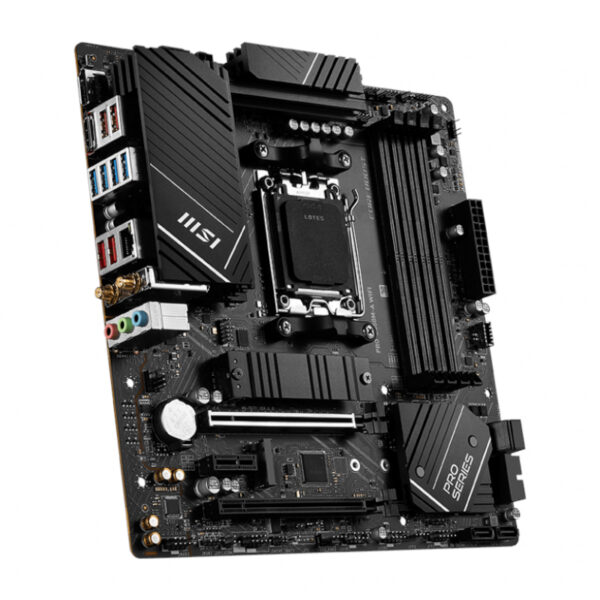

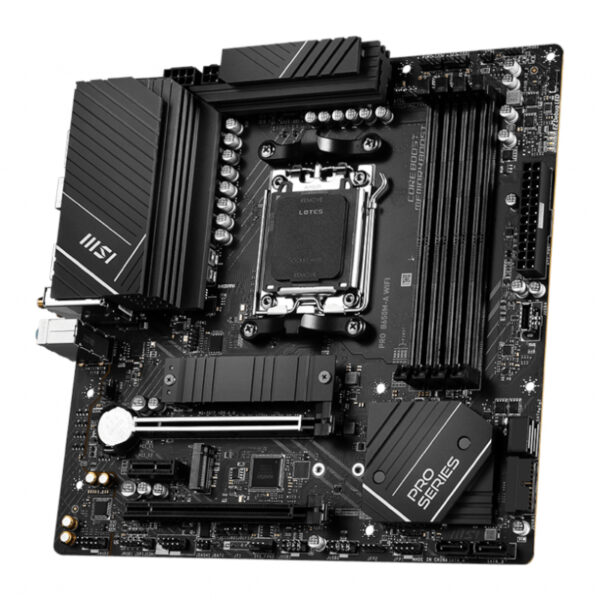

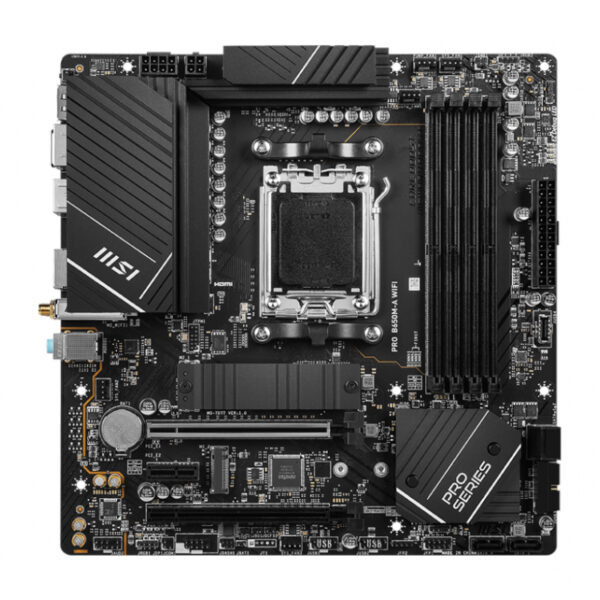

MSI PRO B650M AMD AM5 mATX Gaming Motherboard

MSI PRO B650M AMD AM5 mATX Gaming Motherboard - Image 3

MSI PRO B650M AMD AM5 mATX Gaming Motherboard

R5,129.00

Out of stock

SKU : PROB650M-AWIFI Category : AMD Motherboards

The MSI PRO B650M-A WIFI motherboard is designed with tons of flexible tools and a convenient Wi-Fi solution with DDR5 memory support as well as the latest AMD AM5 socket CPU support. Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. It not only supports a multi-core CPU but also creates the perfect conditions for overclocking your CPU. The motherboard’s PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

The MSI PRO B650M-A features a huge step in DDR performance enhancement with the latest DDR5 memory. Combining a dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver world-class memory performance. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. The easy-to-enable EXPO profile with auto power settings gives you the best memory speed and stability.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in the BIOS and software with a simplified graphical interface. You can also set up 4 temperature targets, which will adjust the fan speeds automatically. MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence.

FEATURES:

Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
Core Boost: With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for a high-performance system and non-stop works
High-Quality PCB: 6-layer PCB made by 2oz thickened copper
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with the studio-grade sound quality for the most immersive gaming experience

SPECIFICATIONS:

Socket: AM5
CPU Support: Supports AMD Ryzen™ 7000 Series Desktop Processors
Chipset: AMD B650
DDR5 Memory: DDR5 4800 MHz (by JEDEC & PRO)
Max. overclocking frequency:
- 1DPC 1R Max speed up to 6400+ MHz
- 1DPC 2R Max speed up to 5800+ MHz
- 2DPC 1R Max speed up to 6000+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Memory Channel: Dual Channel DDR5
DIMM Slots: 4
Max Memory (GB): 128
PCI-E x16: 2
PCI-E x1: 1
SATAIII: 4
M.2 Slot: 2
RAID: 0/1/10
LAN: 1x Realtek® 8125BG 2.5G LAN
Wi-Fi and Bluetooth: Intel® Wi-Fi 6E module
USB 3.2 ports (Front): 1(Gen 2, Type-C), 2(Gen 1, Type A)

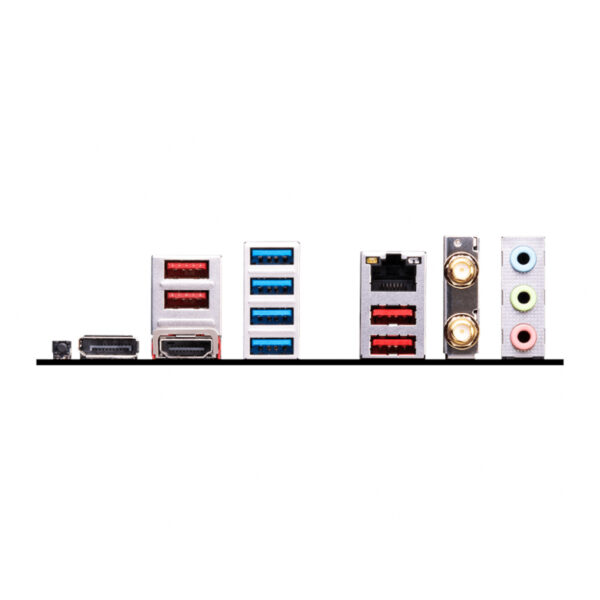

USB 3.2 ports (Rear): 4(Gen 2, Type A), 4(Gen 1, Type A)
USB 2.0 ports (Front): 4
Audio ports (Rear): 7.1 Channel HD Audio (Realtek® ALC897 Codec)
DisplayPort: 1
HDMI: 1
DirectX: 12
Form Factor: mATX
Operating System: Support for Windows® 11 64-bit and Windows® 10 64-bit
