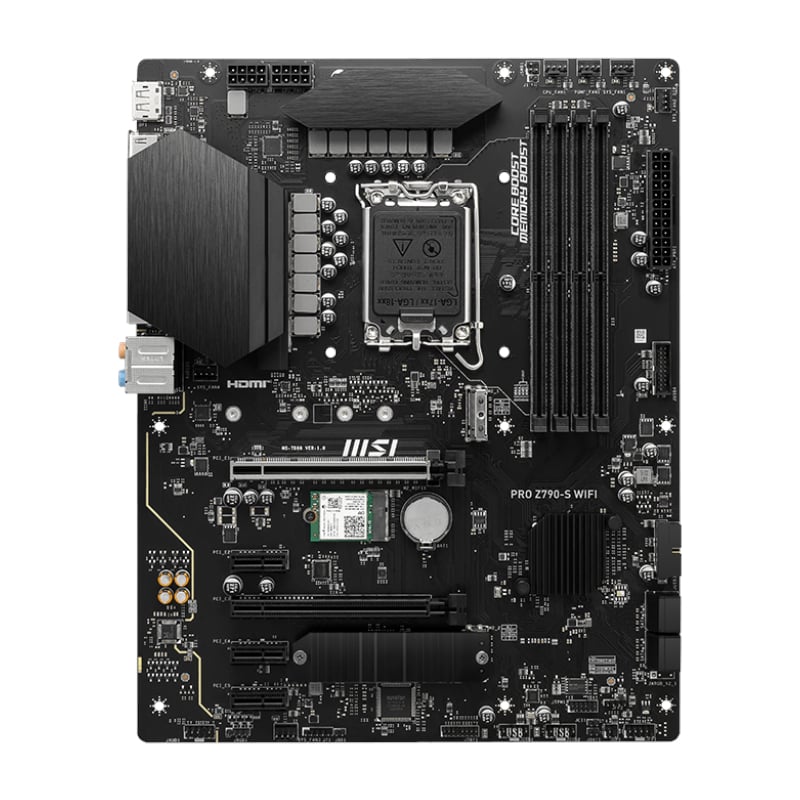

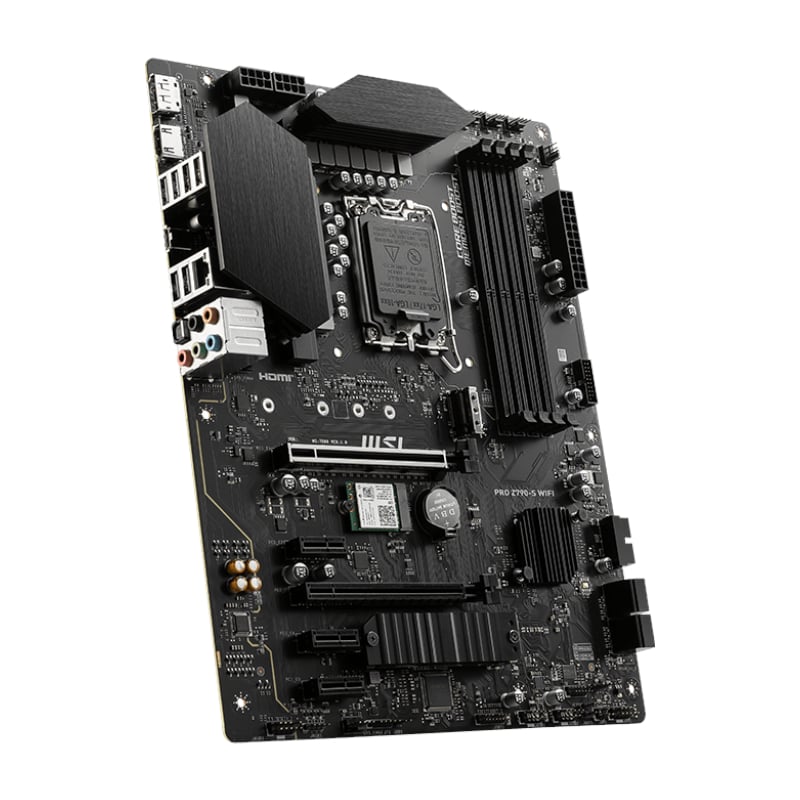

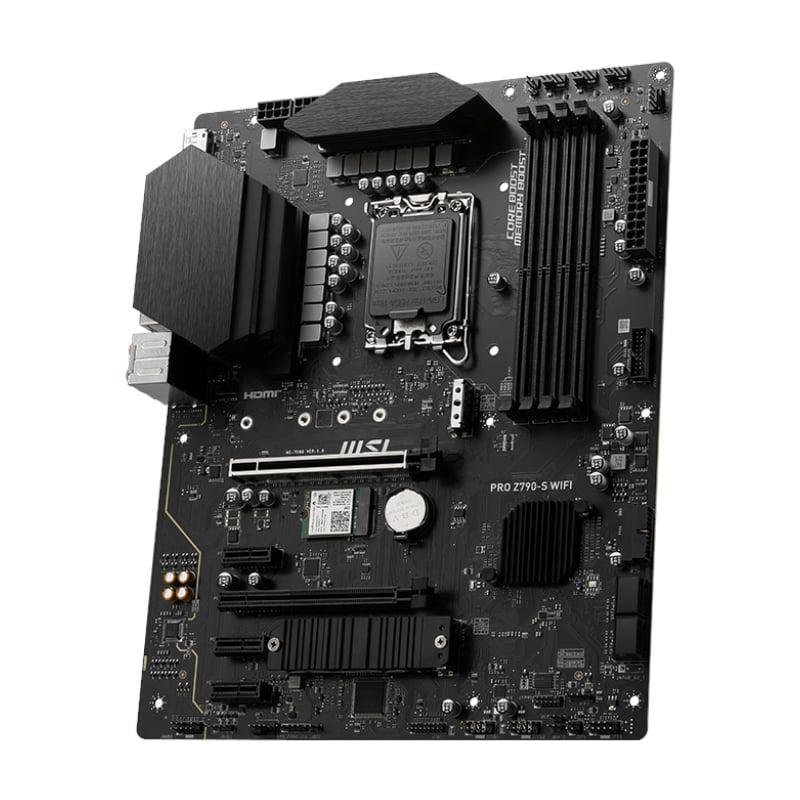

MSI PRO Z790-S WIFI DDR5 LGA1700 ATX Gaming Motherboard

The PRO series motherboards offer stable functionality and high-quality assembly. They not only optimise professional workflows but also reduce troubleshooting and ensure longevity.MSI motherboards offer a wide range of convenient and intelligent designs specifically tailored for DIY users. Additionally, they provide numerous system tuning and troubleshooting tools that allow you to maximise your system’s performance and meet the needs of even the most demanding tweakers.

The latest DDR5 memory represents a significant advancement in DDR performance enhancement. MSI PRO Series motherboards are equipped with a dedicated SMT welding process and MSI Memory Boost technology, ensuring exceptional memory performance. Experience lightning-fast speeds with USB 3.2 devices like never before! The MSI PRO Series motherboards provide a diverse range of options for connecting and enhancing your USB devices. They offer unprecedented USB speeds of up to 20Gb/s when utilising the Rear USB Type-C connection.

The Extended Heatsink is designed to increase the surface area for heat dissipation, allowing for optimal performance even under heavy loads. The enhanced M.2 thermal solution provides effective protection for M.2 SSDs, ensuring both their safety and exceptional performance. The VRM heatsink is responsible for covering the upper MOS and aiding in the dissipation of heat. The stable performance of all cores running at high speed is ensured by using high-quality 7W/mK MOSFET thermal pads and additional choke thermal pads. The chipset heatsink is specifically designed to minimise the accumulation of dust and reduce noise. Additionally, it effectively dissipates heat, ensuring optimal efficiency.

Experience the full potential of maximum performance with a VRM design that boasts a robust 12+1+1 power configuration, ensuring optimal power delivery and sustained efficiency. MSI PRO Series motherboards are equipped with dual power connectors and exclusive Core Boost technology, making them capable of handling demanding daily workloads with ease. The PCB design has been optimised to enhance bandwidth and increase transfer speeds, resulting in improved reliability for circuit transmission.

FEATURES:

• Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6600+MHz (OC)
• Enhanced Power Design: 12+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance
• system and non-stop gaming experience
• High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server-grade level material
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience

SPECIFICATIONS:

• CPU Support: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
• Chipset: INTEL Z790
• DDR5 Memory: DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:  1DPC 1R Max speed up to 6600+ MHz, 1DPC 2R Max speed up to 6400+ MHz
• Memory Channel: Dual Channel DDR5
• DIMM Slots: 4
• Max Memory (GB): 192
• PCI-E x16: 2
• PCI-E x1: 3
• SATA 6G: 4
• M.2 Slot: 2
• RAID: 0/1/5/10
• LAN: Realtek® RTL8125BG 2.5Gbps LAN
• Power Connector(ATX_PWR): 1
• Power Connector(CPU_PWR): 2
• CPU Fan: 1
• Pump Fan: 1
• System Fan: 4
• Front Panel (JFP): 2
• Chassis Intrusion (JCI): 1
• Front Audio (JAUD): 1
• Addressable V2 RGB LED connector (JARGB_V2): 2
• RGB LED connector(JRGB): 2
• TPM pin header(Support TPM 2.0): 1
• USB 2.0 ports: 4
• USB 3.2 Gen1 Type A ports: 4
• Audio ports (Rear): Realtek® ALC897 Codec 7.1-Channel High Definition Audio
• Bluetooth: 5.3, FIPS, FISMA
• Wi-Fi: Wi-Fi 6E
• HDMI: 1
• DisplayPort: 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 11 64-bit and Windows® 10 64-bit

WHAT’S IN THE BOX:

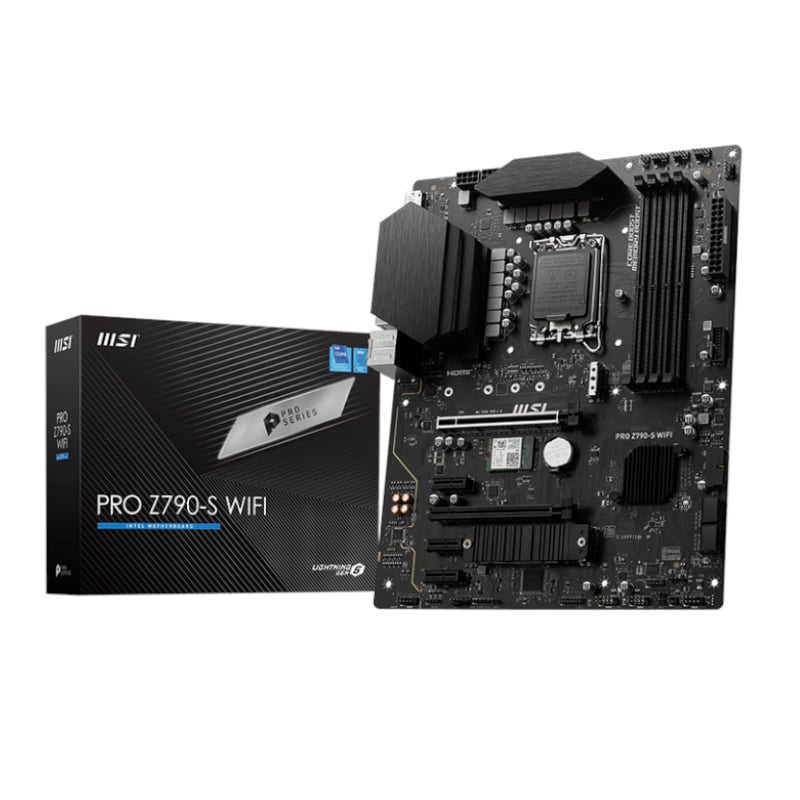

• MSI PRO Z790-S WIFI ATX Gaming Motherboard – Black x1
• I/O Shield x1
• SATA Cable x1
• EZ M.2 Clips x1
• Quick Install Guide x1
