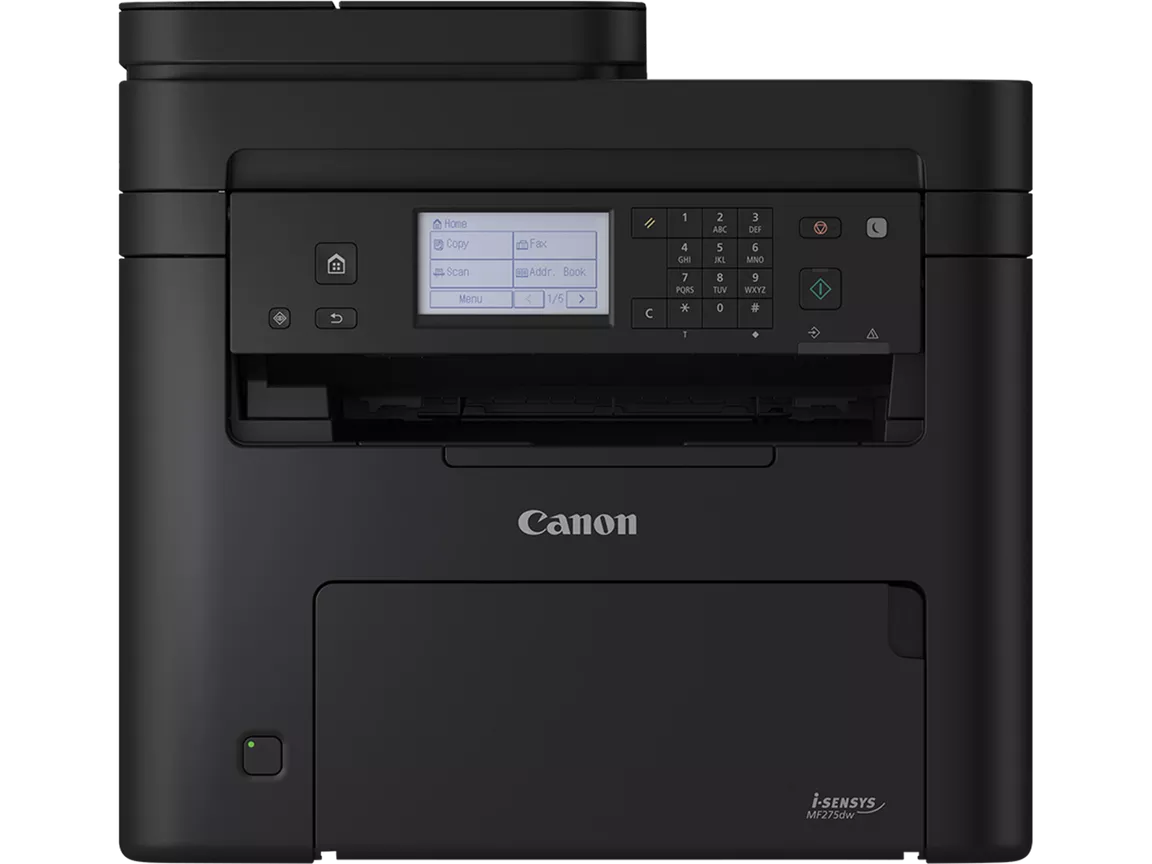

Canon i-SENSYS MF275dw

• Machine Type
  Monochrome laser
• Available Functions
  Print, copy, scan, fax

Print Specifications

• Print Speed
  Single sided: Up to 29 ppm (A4)
  Double sided: Up to 18.5 ipm (A4)
• Printing Method
  Monochrome laser beam printing
• Print Resolution
  Up to 2400 equivalent x 600 dpi
• Warm-up Time
  Approx. 7.5 seconds or less from power on
• First-Print-Out Time
  Approx: 5.4 seconds or less (400dpi)
  Approx: 7.1 seconds or less (600dpi)
• Printer Languages
  UFRII
• Print Margins
  5 mm-top, bottom, left and right
• Toner Saver Mode
  Yes
• Advanced Printing Features
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
  Microsoft Universal Print support

Copy Specifications

• Copy Speed
  Single sided: Up to 29 ppm (A4)
  Double sided: Up to 18.5 ipm (A4)
• First-Copy-Out Time
  ADF (A4):
  8.9 seconds or less
  Platen (A4):
  7.6 seconds or less
• Copy Resolution
  Up to 600 x 600 dpi
• Copy Modes
  Text/Photo, Text/Photo (High speed), Photo, Text
• Double Sided Copying
  1-sided to 2-sided (Automatic)
• Multiple Copies
  Up to 999 copies
• Reduction / Enlargement
  25-400% in 1% increments
• Other Features
  Collate Copies, 2 on 1, 4 on 1, ID card copy, Passport copy

Scan Specifications

• Standard Type
  Colour
• Scan Resolution
  Optical: Up to 600 x 600 dpi
  Enhanced: Up to 9600 x 9600 dpi
• Scan Speed
  Platen:
  Single sided mono: 2.7 sec/page (300x600dpi)
  Single sided colour: 3.5 sec/page (300x300dpi)

  ADF:
  Single sided mono: 20ipm (300x600dpi)
  Single sided colour: 15ipm (300x300dpi)

• Colour Scanning Depth
  24 bit/24 bit (input/output)
• Greyscales
  256 levels
• Compatibility
  TWAIN , WIA
• Maximum Scan Width
  216mm
• Scan to PC
  JPEG (single page only)
• Scan to Cloud
  TIFF/JPEG/PDF/PNG¹

Fax Specifications

• Modem Speed
  33.6 Kbps (Up to 3 seconds/page²)
• Receive Mode
  Fax only, Fax/Tel Auto Switch, Answer Mode, Manual
• Fax Resolution
  Normal: 200 x 100 dpi
  Fine: 200 x 200 dpi
  Photo: 200 x 200 dpi
  Super fine: 200 x 400 dpi
• Fax Memory
  Up to 256 pages³
• Speed Dials
  Up to 104 dials
• Group Dials/Destinations
  Max. 50 destinations in one group
• Sequential Broadcast
  Max. 114 destinations
• Memory Backup
  Permanent fax memory backup (Backup with flash memory)
• Double Sided Faxing
  Yes (Transmit and Receive)
• Other Features
  Sender’s Name (TTI), Direct Send, TX Report, Sequential Broadcasting

Media Handling

• Scanner Type
  Flatbed and Automatic Document Feeder (ADF)
• Paper Input (Standard)
  150-sheet cassette
  1-sheet multi-purpose tray
  35-sheet ADF
• Maximum Paper Input Capacity
  186 sheets
• Paper Output
  50-sheet
• Media Types
  Plain paper, Recycled paper, Heavy Paper, Thin paper, Bond paper, Label, Post card, Envelope
• Media Sizes
  Cassette :
  A4, A5, B5, A6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Envelop (COM10, Monarch,  DL, C5), Custom sizes: Min. 76.0 x 127 mm  Max. 216.0 x 356.0 mm

  ADF:
  A4, A5, A6^*, B5, B6, Legal, Letter, Custom sizes: Min. 105 x 148 mm  Max 216 x 356 mm
  *Attachement required

• Media Weights
  Cassette: 60 to 163 g/m²
  ADF: 105 to 128 g/m² (Single sheet)
  50 to 105 g/m² (Multiple sheet)
• Double Sided Printing
  Automatic
  A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, Foolscap
  Custom size – Min. 210 x 279 mm Max. 216 x 356 mm
  60 to 105 g/m²

Interface & Software

• Interface Type
  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
  Mac OS X version 10.12 & up
  Linux⁴
• Network Protocol
  Print:
  TCP/IP (LPD/Port9100/WSD)
  Pull Scan: TCP/IP, USB

  Management:
  SNMPv1, SNMPv3 (IPv4,IPv6)

  Security:
  TLS1.3, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless): IEEE802.1x
  Infrastructure Mode:
  WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA-EAP(AES), WPA2-EAP(AES)
  Access Point Mode:
  WPA2-PSK(AES)

• Software and Printer Management
  MF Scan Utility, Remote User Interface (RUI), Toner Status Tool

Software & Printer Management

• Tracking & Reporting
  MF Scan Utility, Remote User Interface (RUI), Toner Status Tool

General Features

• Recommended Monthly Print Volume
  150 – 2,000 pages per month
• Duty Cycle
  Max. 20,000 pages per month4
• Processor Speed
  1200MHz
• Memory
  256MB
• Dimensions with Trays (W x D x H)
  6-line LCD B&W Touch Screen
• Installation Space (W x D x H)
  390 mm x 374 mm x 368 mm
• Weight
  Approx. 11.4 Kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity: 20 to 80% RH (no condensation)
• Power Source
  220-240V(±10%) 50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 1300 W
  Active printing: Approx. 530W
  Standby: Approx. 4.8 W
  Sleep mode: Approx. 1.0 W
  Typical Electricity Consumption (TEC): 0.23 kWh/week⁵
  For detailed information relating to Lot26 regulation, please go to:  http://www.canon-europe.com/For_Work/Lot26/index.aspx
• Noise Levels
  Sound Pressure⁶ :
  Active: Simplex 50 dB
  Duplex 51 dB
  Standby: Inaudible⁷

  Sound Power⁸:
  Active:  69.3 dB or less
  Standby: N/A

Consumables

• Cartridges
  Cartridge 071 (1,200 pages ⁹)¹⁰
  Cartridge 071H (2,500 pages ¹¹)¹²

Accessories & Options

• Items
  TEL 6 KIT (Telephone handset)
