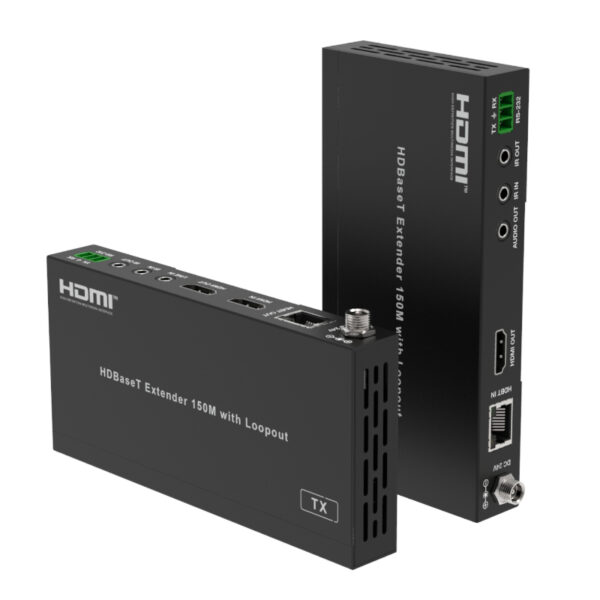

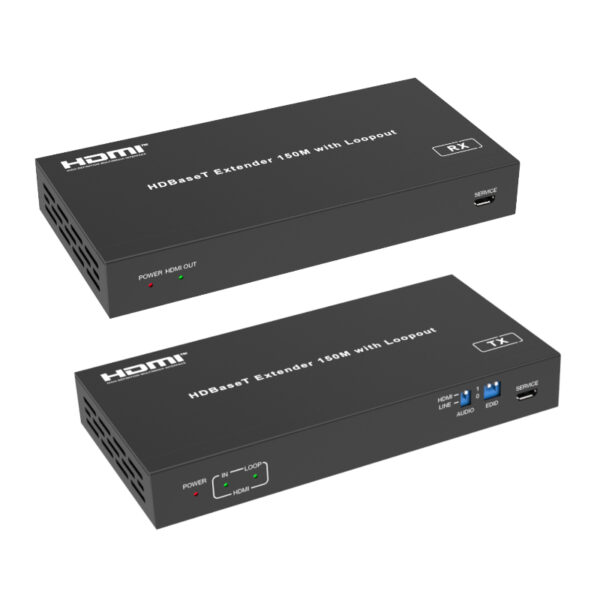

HDCVT HDMI HDBaseT 150m 1080P Extender w/Audio Embedder and De-embedder

The HDCVT HDBaseT 150M 1080p Extender with Audio Embedment and dis-embedment is capable of extending HDMI signals from signal sources to display devices via CAT 5e/6 cables with a distance of up to 150m/492ft and a video resolution of up to 1080p@60Hz YUV4:4:4. It supports directional IR control, RS-232 control, EDID management, audio embedment(TX) and audio dis-embedment(RX). The transmitter supports the HDMI signal loop out. Equipped with a powerful chip, the extender can deliver a stable working connection for 24-hours continuously with low power consumption. It is easy to use, plug and play, which is widely applied in scenarios such as a video conference, an out-doors big-screen demonstration, and a home theatre.

FEATURES:

• HDMI 1.3 and HDCP 1.4 compliant
• Video resolution is up to 1080p@60Hz
• The transmission distance via a single CAT 5e/6 cable is up to 150m/492ft
• Support bi-directional IR control, RS-232 control and EDID management
• Support audio embedment and dis-embedment
• Support bi-directional PoC (Power over Cable) function
• Compact design for easy and flexible installation

SPECIFICATIONS:

• Housing: Metal Enclosure
• Silkscreen Colour: Black
• Power Consumption: 8.4W (Max)
• Power Supply Input: AC100~240V 50/60Hz
• Power Supply Output: DC 24V/1A (Locking connector)
• HDMI Compliance: HDMI 1.3
• HDCP Compliance: HDCP 1.4
• Video Bandwidth: 6.75Gbps
• Video Resolution: 480i~1080p@50/60Hz, Up to 1200p@60Hz
• Colour Depth: 8-bit (1080p60Hz)
• Colour Space: RGB, YCbCr 4:4:4 / 4:2:2
• HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DT:X
• Extension Range: 150m/492ft at 1080p@60

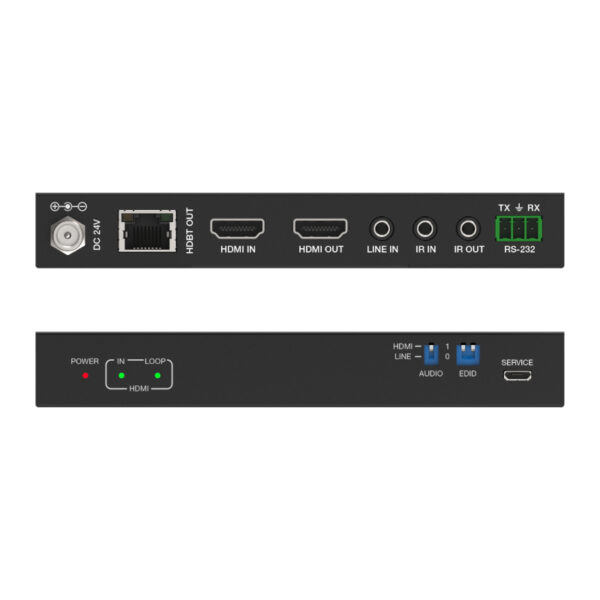

• Transmitter Input: 1x HDMI IN [Type-A 19-pin female], 1x LINE IN [3.5mm Stereo Mini-jack]
• Transmitter Output: 1x HDBT OUT [RJ45 8-pin female], 1x HDMI OUT [Type-A 19-pin female]
• Transmitter Control: 1x AUDIO DIP Switch [1-pin], 1x EDID DIP Switch [2-pin], 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack], 1x RS-232 [Phoenix jack], 1x Service [Micro-USB jack]

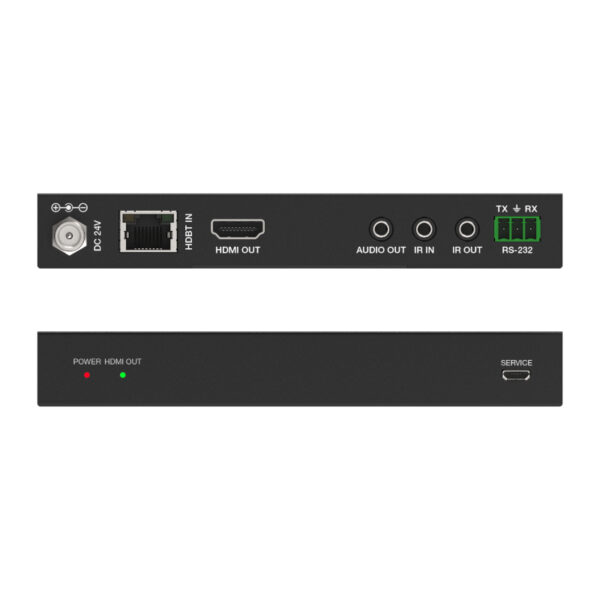

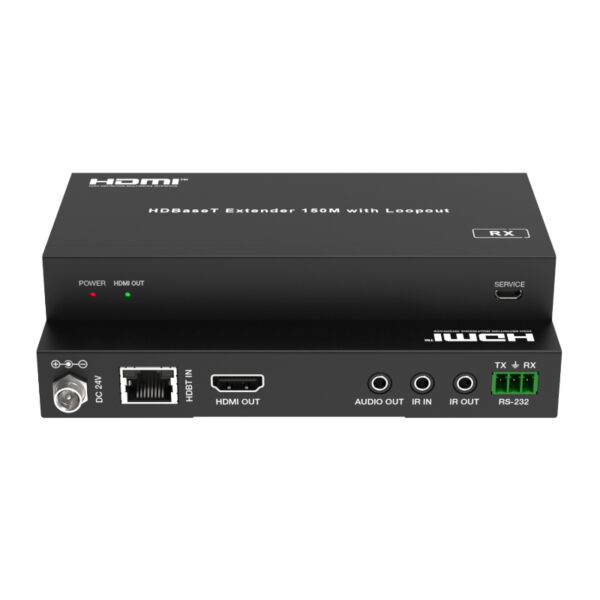

• Receiver Input: 1x HDBT IN [RJ45 8-pin female]
• Receiver Output: 1x HDMI OUT [Type-A 19-pin female], 1x AUDIO OUT [3.5mm Stereo Mini-jack]
• Receiver Control: 1x RS-232 [Phoenix jack], 1x SERVICE [Micro-USB jack], 1x IR IN [3.5mm Stereo mini-jack], 1x IR OUT [3.5mm Stereo mini-jack]
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Relative Humidity: 20~90% RH (non-condensing)
• Product Dimensions TX/RX: 14.6 x 7.1 x 2.1 cm
• Product Weight: 260g

WHAT’S IN THE BOX:

• HDCVT HDBaseT Extender Transmitter x1
• HDCVT HDBaseT Extender Receiver x1
• IR Blaster Cable (1.5 meters) x1
• IR Receiver Cable (1.5 meters) x1
• 3-pin Phoenix Connector x1
• Mounting Ears x4
• Machine Screws (KM3*4) x8
• 24V/1A Locking Power Adapter x1
• User Manual x1
